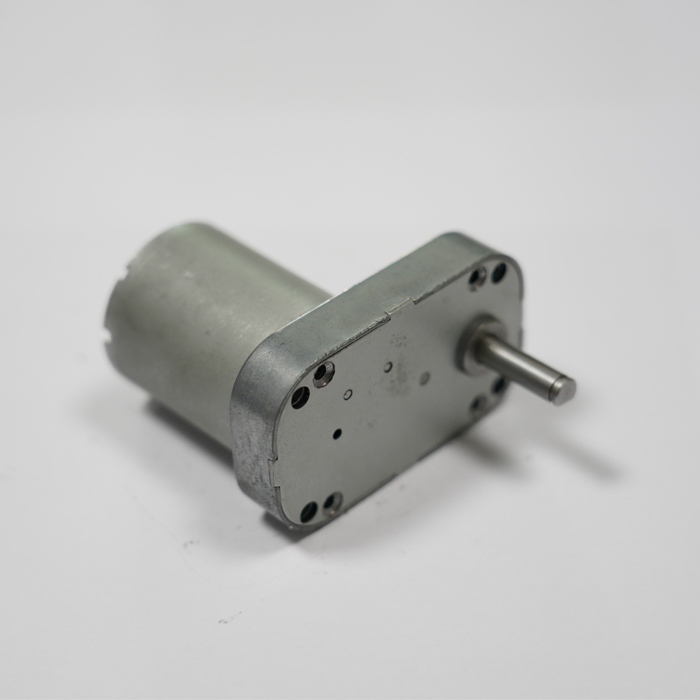

Flat Gearbox Motor

Slim Profile, Strong Performance

Ideal for space-limited designs, iSky flat geared DC motors provide efficient power transmission while maintaining compactness and high torque output.

  • Ultra-thin design for compact assemblies
  • High torque output in low-profile format
  • Stable and low-noise operation
  • Gear ratio and torque customizable
  • Suitable for automation, locks, and robotics
REQUEST CUSTOM SOLUTION
BLDC Motor Technology
BLDC Motor Product Range Section Product List Module - iSky Motor Product List Module - iSky Motor

Premium DC Geared Motors

High-Performance Mini Motors for Various Applications

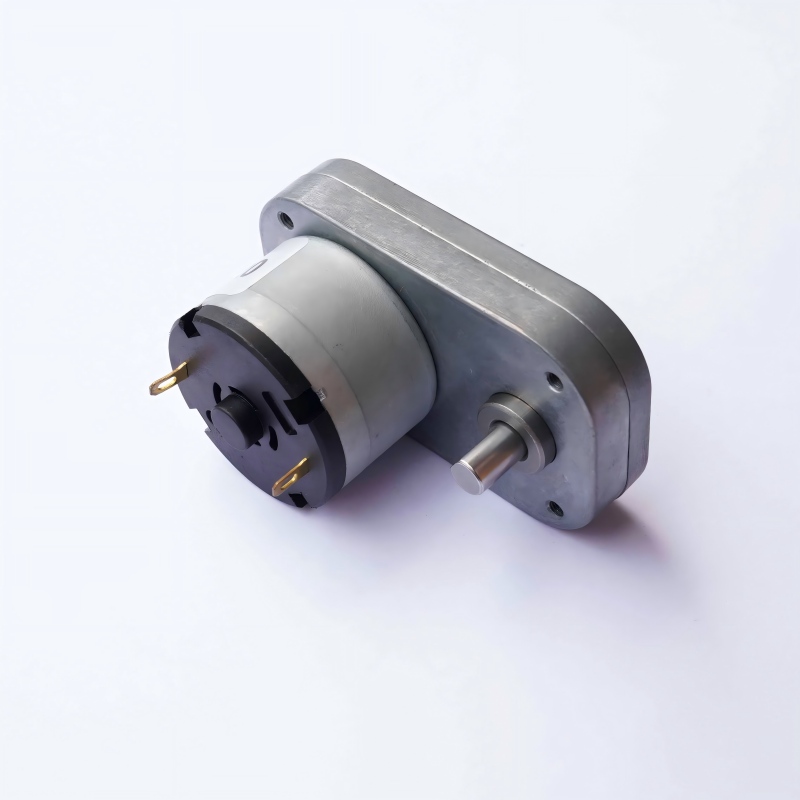

SK-FS65-520

SK-FS65-520

  • • Size: 65*38*33mm
  • • Voltage: 3-24V DC
  • • Speed: 8-150 r/min
  • • Torque: 1-10 kg.cm
  • • Applications: BBQ, Vending machine, Shrimp feeder system, Dosing system, etc.
View Details

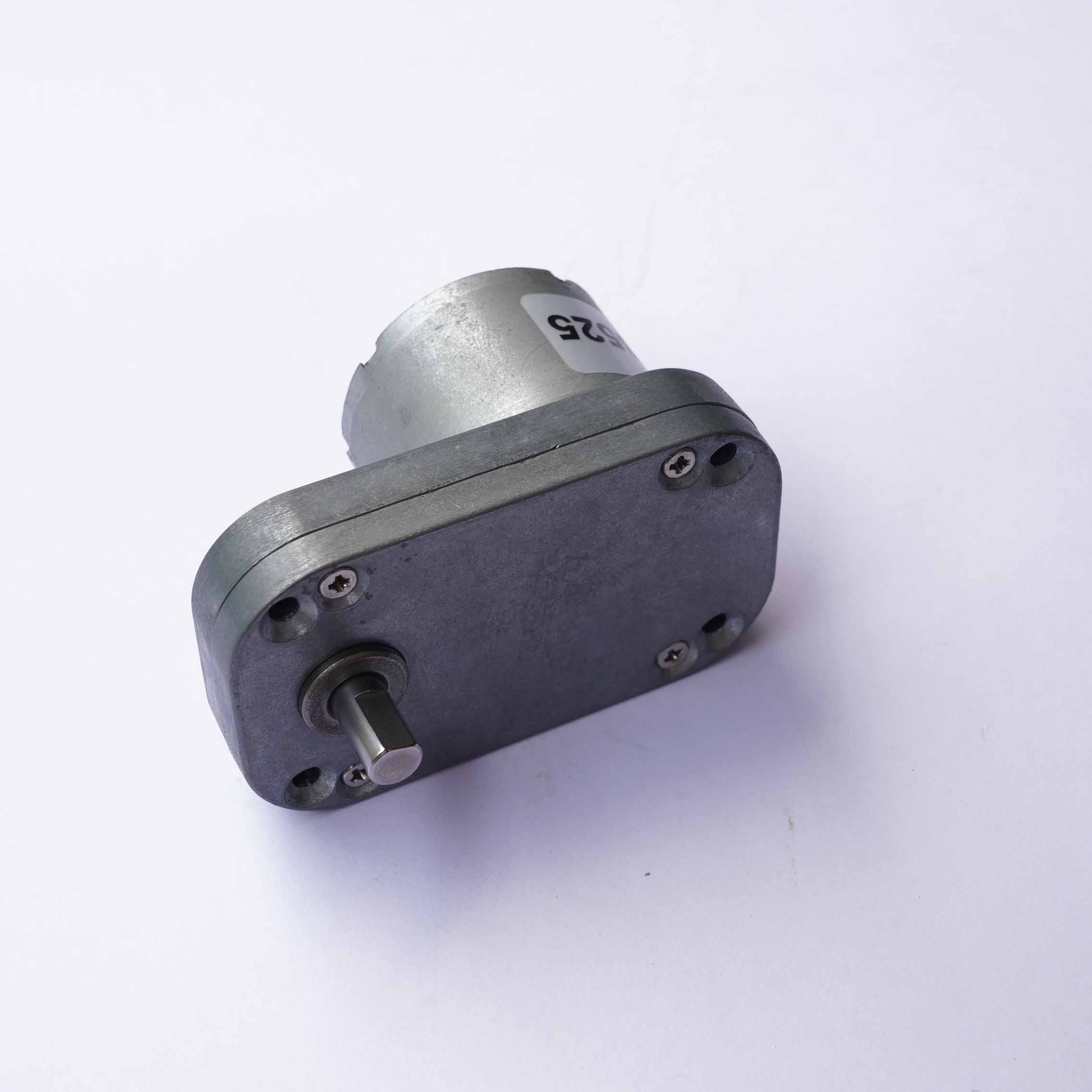

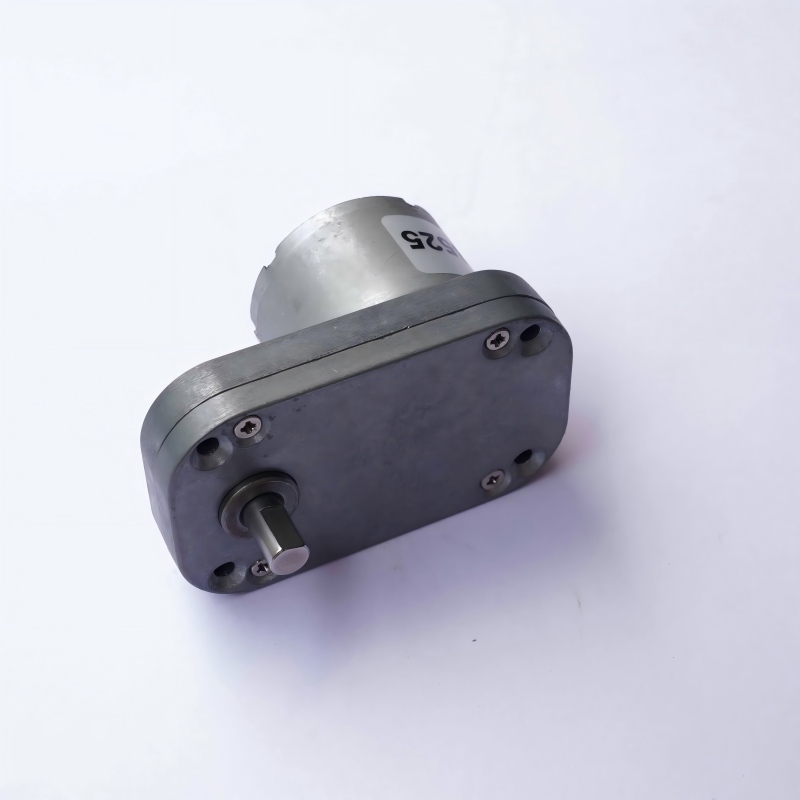

SK-FS65-3540

SK-FS65-3540

  • • Size: 65*38*34mm
  • • Voltage: 3-24V DC
  • • Speed: 10-150 r/min
  • • Torque: 2-20 kg.cm
  • • Applications: Valve, Vending machine, Touchless sauce dispenser,etc
View Details

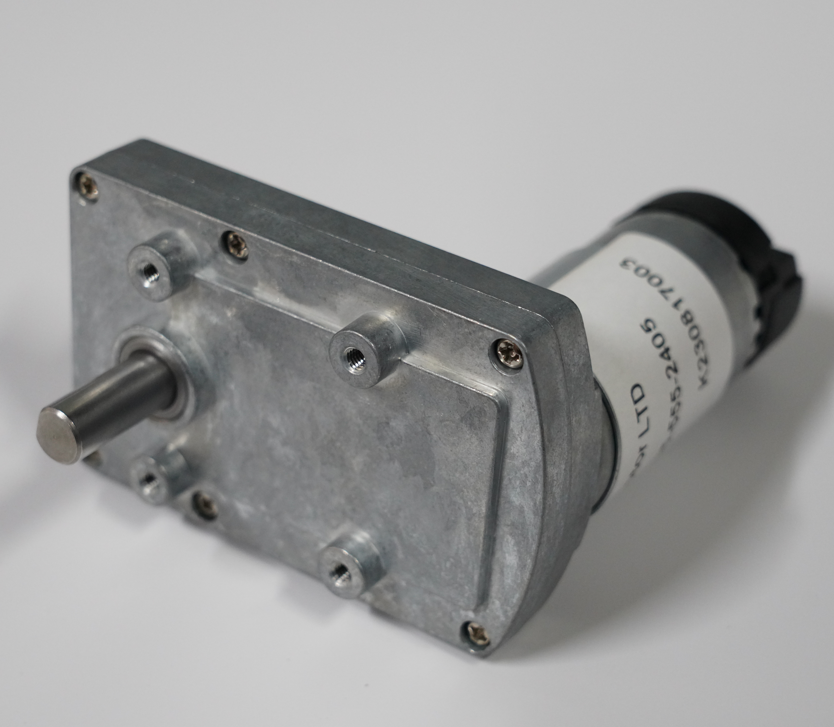

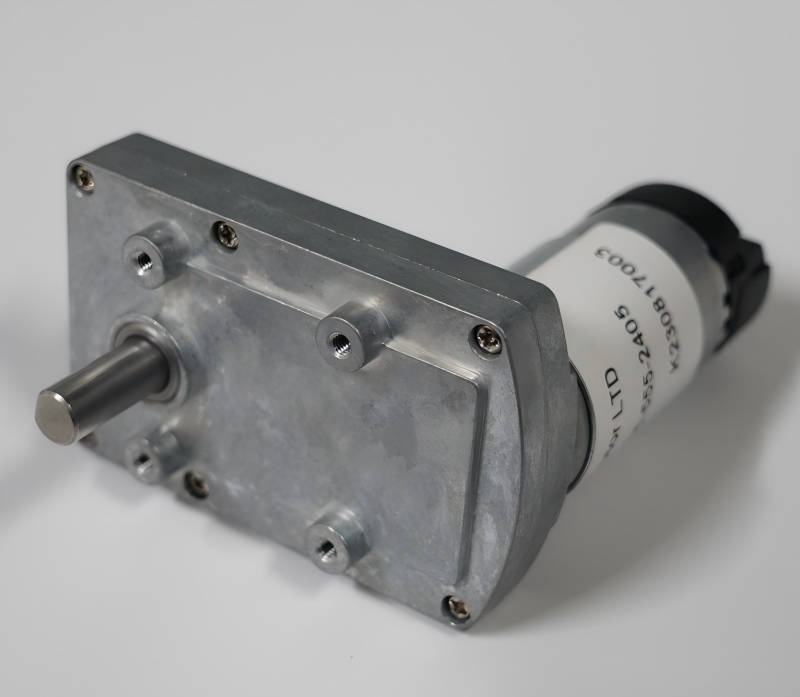

SK-FS95-555

SK-FS95-555

  • • Size: 95*60*36mm
  • • Voltage: 12-24V DC
  • • Speed: 3-65 r/min
  • • Torque: 20-150 kg.cm
  • • Applications: Precision instruments, small appliances
View Details

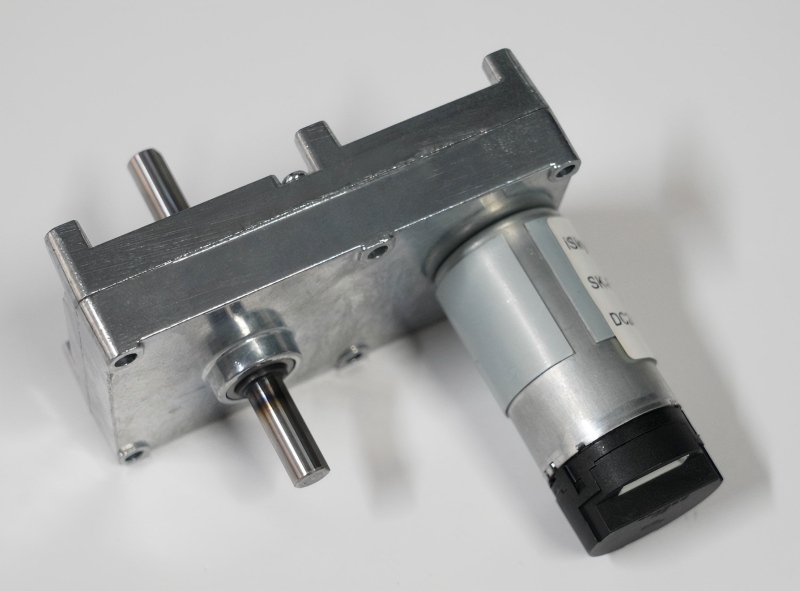

SK-FS119-555

SK-FS119-555

  • • Size: 119*70*38mm
  • • Voltage: 12-24V DC
  • • Speed: 3-5 r/min
  • • Torque: 290-310 kg.cm
  • • Applications: Valve, Vending machine, Pump, BBQ, Equipments,etc.
View Details
Fit Customer Requirements Section Customization Section - iSky Motor Customization Section - iSky Motor

Tailor Every Detail to Match Your Design

From structure to performance, every parameter can be flexibly customized according to your project requirements. iSky Motor has a professional engineering team that can assist in optimizing designs and rapid prototyping.

  • Motor Type: BLDC Motor, Planetary Gearbox DC Motor, Flat Gearbox DC Motor, Worm Gearbox DC Motor, Spur Gearbox DC Motor Adaptive structures for different applications
  • Voltage Range: 3V / 6V / 12V / 24V / 36V Customizable voltage range based on device power supply
  • Gear Ratio: 5:1–500:1 Multiple reduction ratios for different speeds and torques
  • Speed & Torque: Custom per request Precisely calibrated speed and torque based on load conditions
  • Output Shaft: D-shape / Round / Customized Optional shaft types, supports custom length and cross-section
  • Encoder / Hall Sensor: Optional Optional encoder or hall sensor feedback signal
  • Connector Type: JST / Molex / Soldered Wires Meets assembly interface requirements
  • Housing Material: Metal / Plastic Matches strength or cost requirements
  • Dimensions: Custom size and mounting holes Dimensions and mounting holes can be customized for different structures

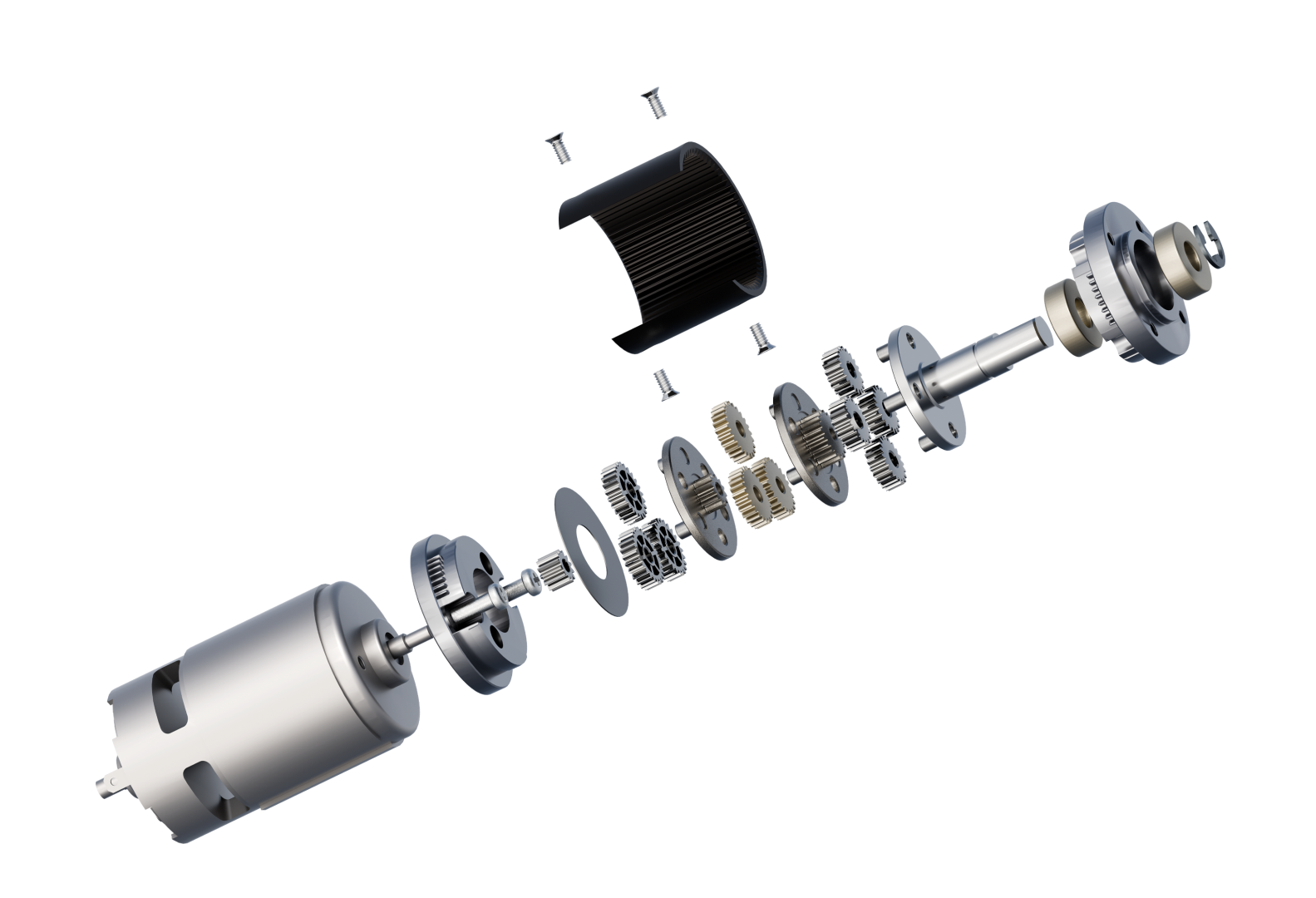

Custom Motor Design Engineering
100% Customizable

Ready to customize your perfect motor solution?

Request Custom Design
Why Choose BLDC Motors Section Why Choose BLDC Motors Section Why Choose BLDC Motors Section

iSky – Mini DC Geared Motor Manufacturer

Learn More Benefits
Get Your Custom BLDC Motor Solution Section Get Your Custom Motor Solution Section Get Your Custom Motor Solution Section

Work With iSky Motor

Tell us about your project – we'll get back to you within 24 hours.

Why Choose iSky Motor?

Partner with a trusted DC motor manufacturer combining engineering expertise, flexible customization, and reliable quality.

Whether you need a standard model or a tailor-made motion solution, our team is ready to support your project from concept to production.

  • 100+ professional engineers for design and testing
  • Customized motor and gearbox solutions
  • Direct factory communication, quick feedback
  • International shipping experience
  • Flexible MOQ and prototyping options
  • Proven experience with European & American clients
  • Certified quality management and on-time delivery
