Planetary Gearbox DC Motor Range
Compact and Powerful Gear Motors Designed for High-Precision Motion Control

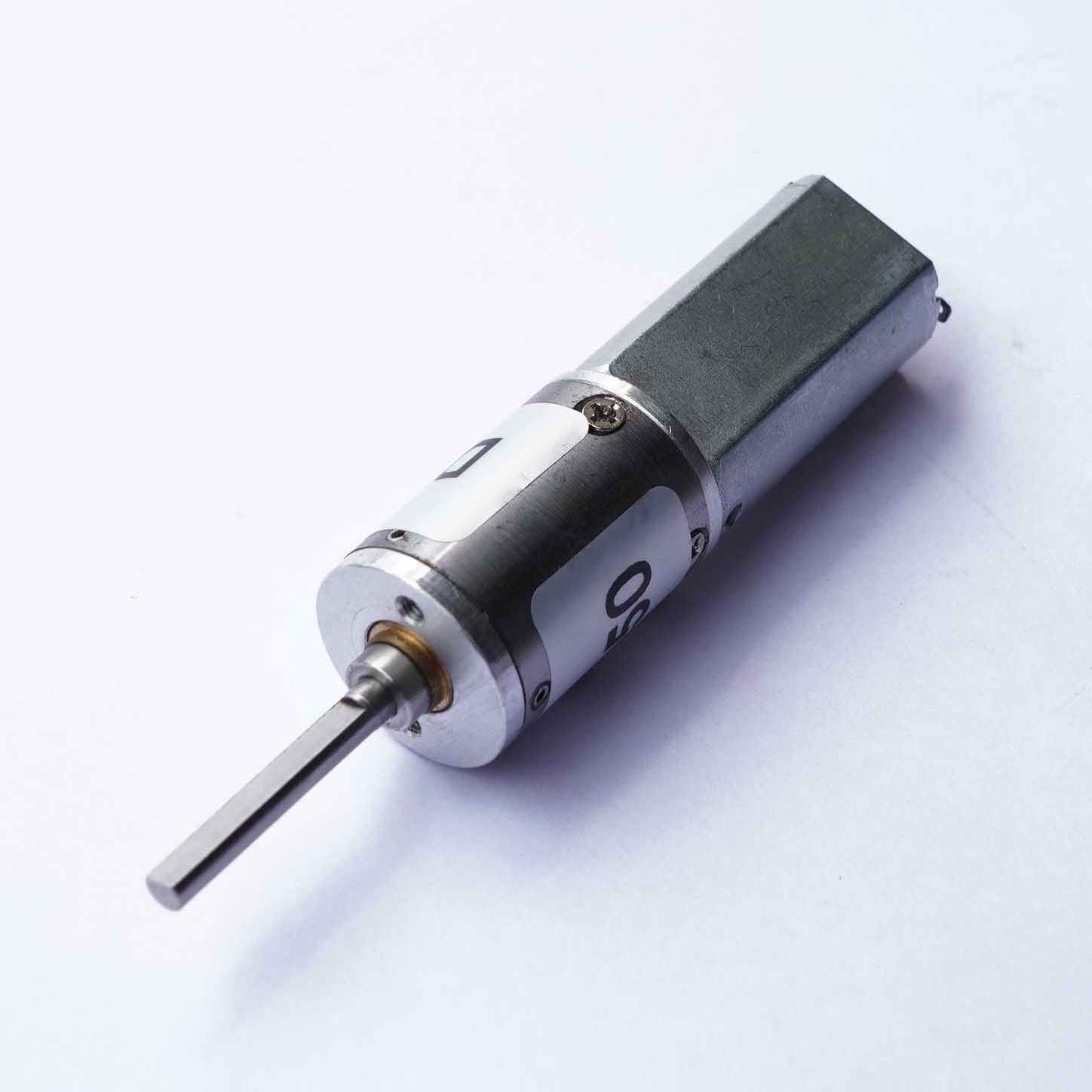

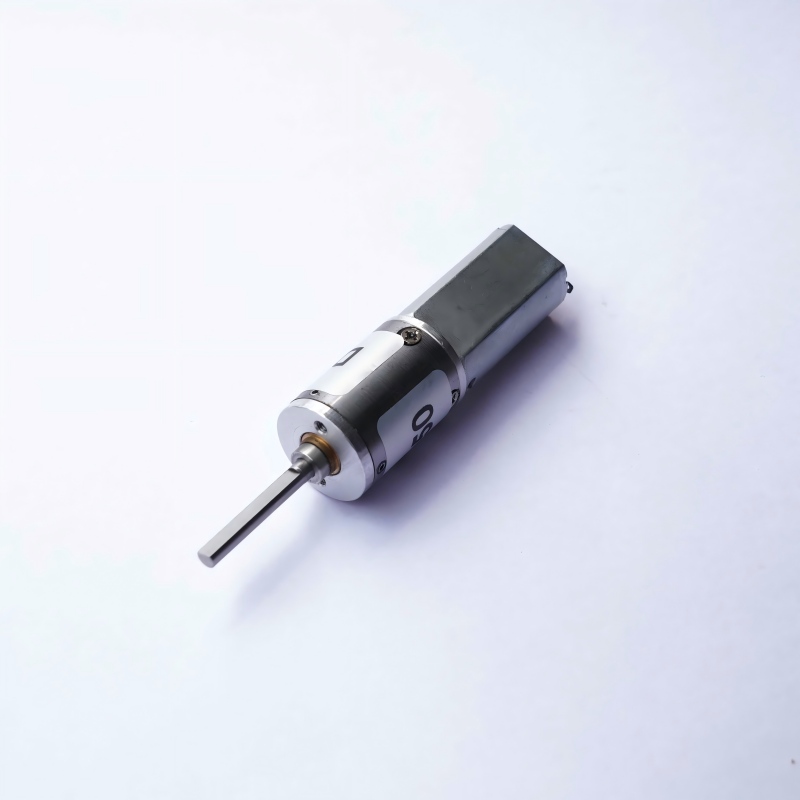

SK-LP16-030
- • Diameter: 16 mm
- • Voltage: 1-6V DC
- • Speed: 3-2210 r/min
- • Torque: 0.1-5 kg.cm
- • Applications: Smart lock, Medical equipment, Robots, Vending machine, etc.

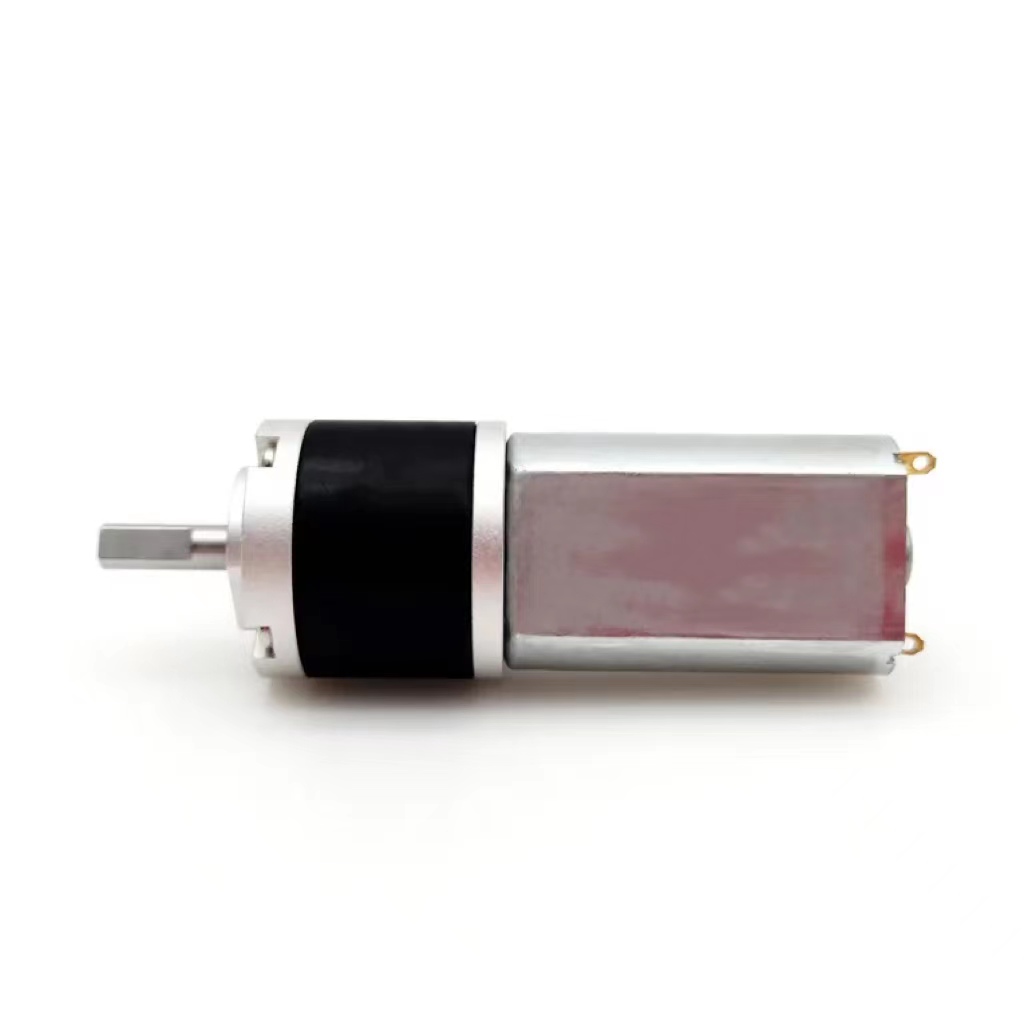

SK-LP22-2140
- • Diameter: 22 mm
- • Voltage: 3-24V DC
- • Speed: 5-375 r/min
- • Torque: 0.1-10 kg.cm
- • Applications: Smart lock, Medical equipment, Robots, Infusion system,etc.

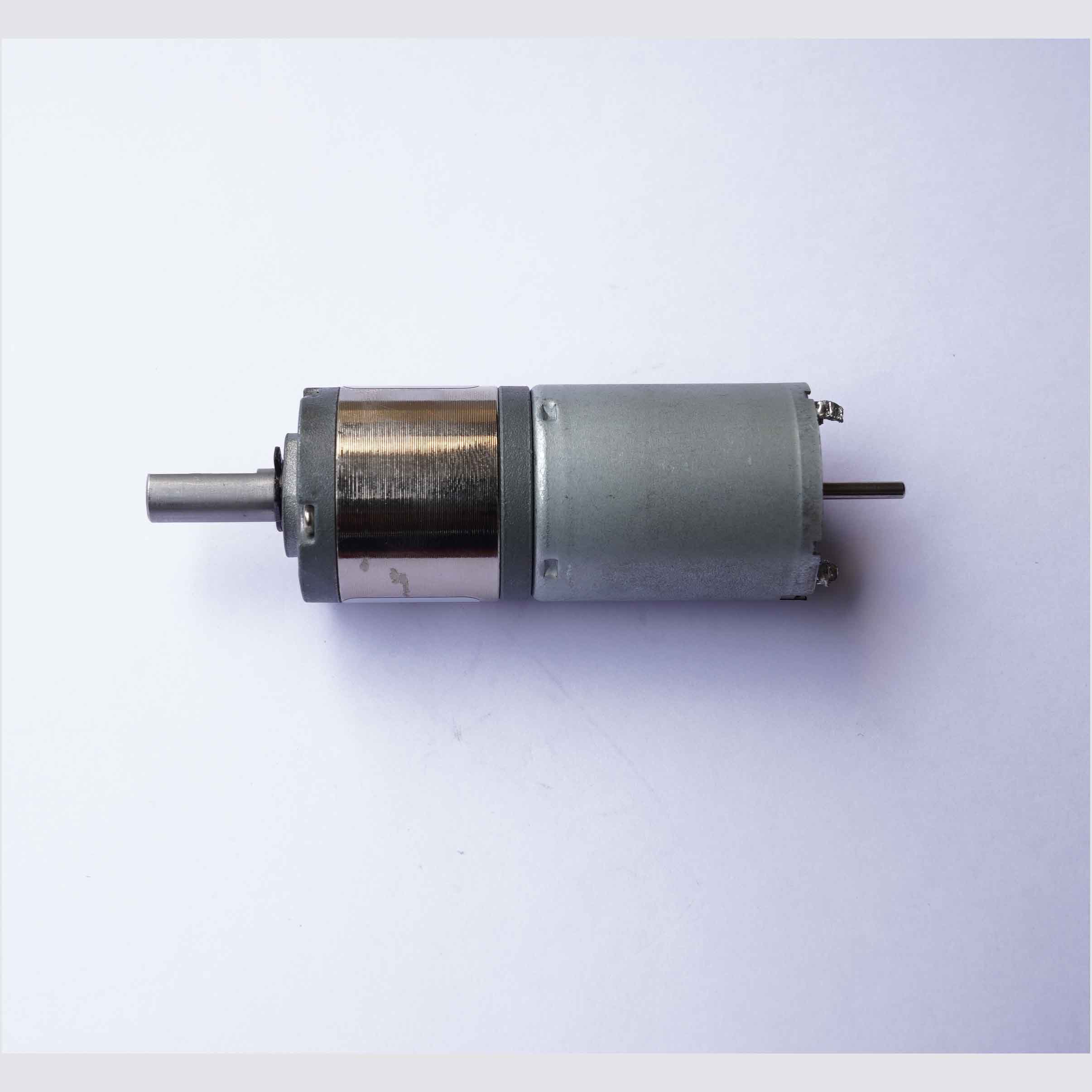

SK-LP24-370
- • Diameter: 24 mm
- • Voltage: 3-24V DC
- • Speed: 3-375 r/min
- • Torque: 0.1-10 kg.cm
- • Applications: Dosing system, Medical equipment, robots, Coffee machine, etc.

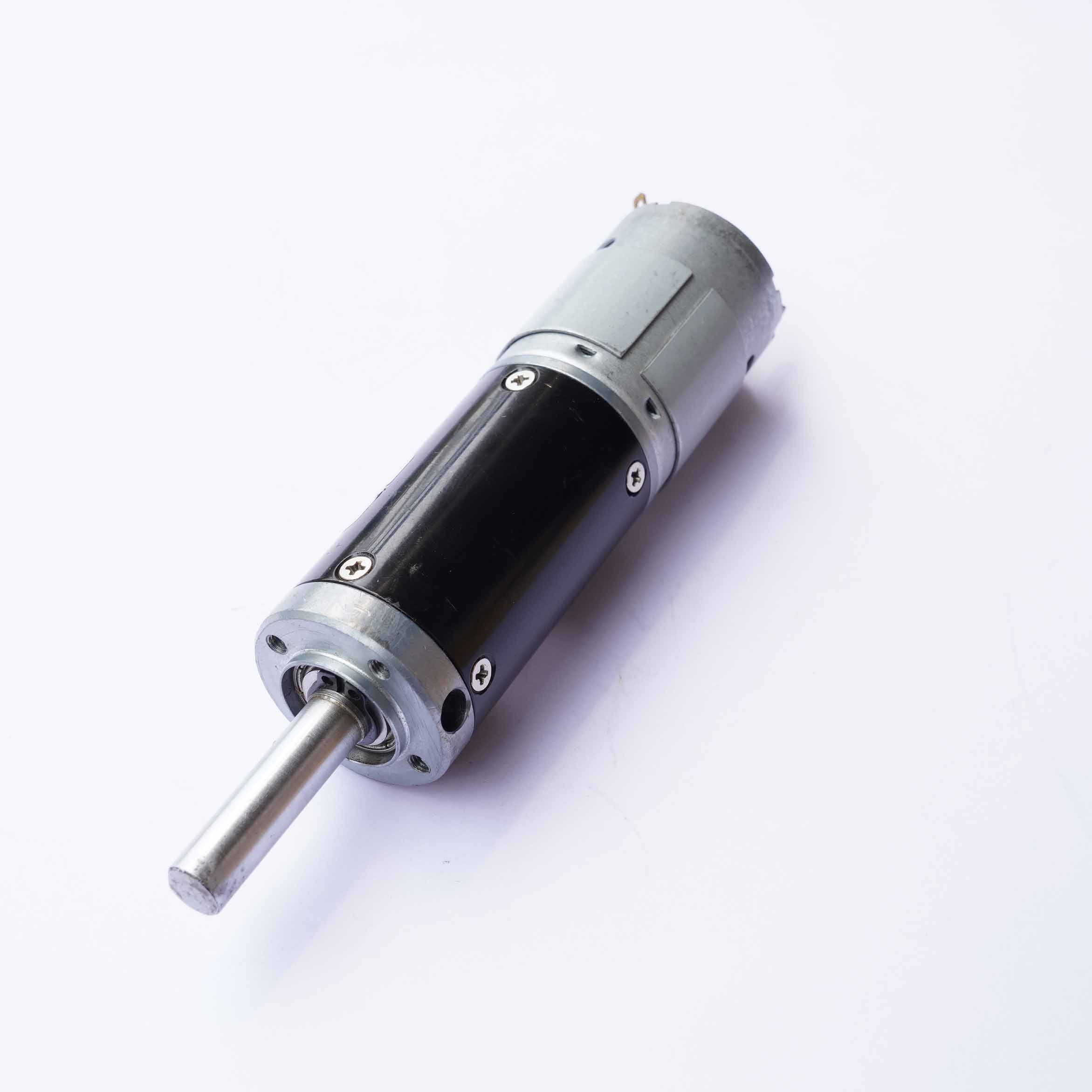

SK-LP28-395
- • Diameter: 28 mm
- • Voltage: 6-24V DC
- • Speed: 5-1621 r/min
- • Torque: 0.1-60 kg.cm
- • Applications:Auto TV lift, Medical equipment, Robots, Coffee machine, etc.

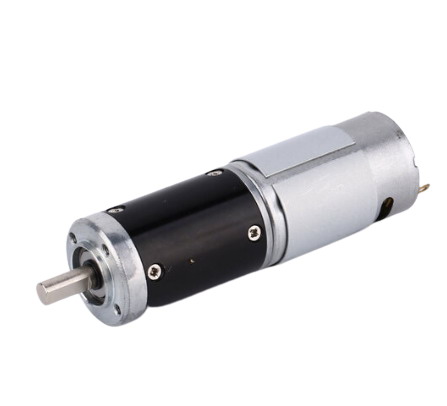

SK-LP32-395
- • Diameter: 32 mm
- • Voltage: 6-24V DC
- • Speed: 5-865 r/min
- • Torque: 1-80 kg.cm
- • Applications: Auto TV lift, Electric valve, Pump, Medical equipment,etc.

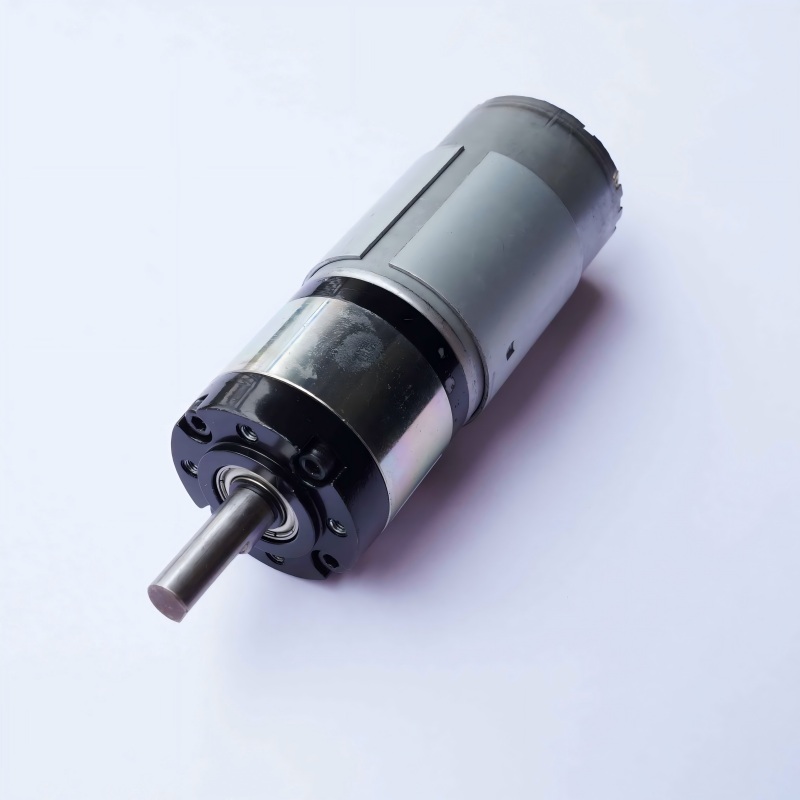

SK-LP36-555
- • Diameter: 36 mm
- • Voltage: 12-24V DC
- • Speed: 2-167 r/min
- • Torque: 2-100 kg.cm
- • Applications: Electric valve, Pump, Medical equipment, Coffee machine,etc.

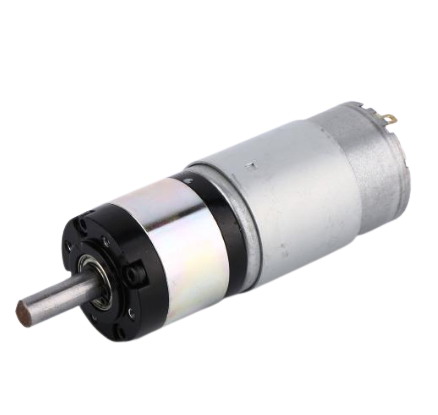

SK-LP42-775
- • Diameter: 42 mm
- • Voltage: 12-24V DC
- • Speed: 7-1621 r/min
- • Torque: 2-120 kg.cm
- • Applications: Electric valve, Pump, Medical equipment, Coffee machine,etc.
Tailor Every Detail to Match Your Design
From structure to performance, every parameter can be flexibly customized according to your project requirements. iSky Motor has a professional engineering team that can assist in optimizing designs and rapid prototyping.
- Motor Type: BLDC Motor, Planetary Gearbox DC Motor, Flat Gearbox DC Motor, Worm Gearbox DC Motor, Spur Gearbox DC Motor Adaptive structures for different applications
- Voltage Range: 1-24V DC Customizable voltage range based on device power supply
- Speed & Torque: Custom per request Precisely calibrated speed and torque based on load conditions
- Output Shaft: D-shape / Round / Customized Optional shaft types, supports custom length and cross-section
- Encoder / Hall Sensor: Optional Optional encoder or hall sensor feedback signal
- Gear Material: Metal / Plastic Matches strength or cost requirements
