SK-LP36-555
- High torque & High speed
- Low noise & Long life time
- Application：Electric valve, Pump, Medical equipment, Coffee machine,CCTV monitor, etc.
Diameter
36 mm
Voltage
12-24V DC
Speed
2-167 r/min
Torque
2-100 kg.cm
Noise Level
≤55 dB
Life time
customizable

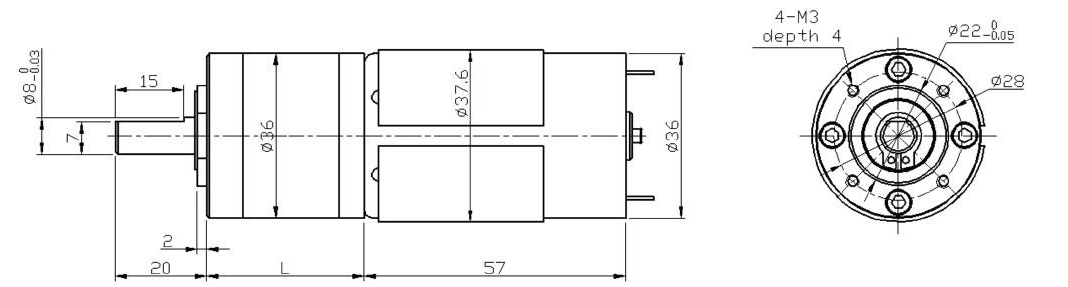

Dimensions
All dimensions are in (mm) unless otherwise noted. Drawings are for reference only—please contact us to confirm exact specifications.
Parameters
| Gearbox Stages | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Gear Ratio | 3.7 | 15 | 51 | 189 | 977 |
| 5.2 | 19 | 71 | 264 | 1367 | |
| / | 27 | 100 | 369 | 1910 | |
| / | / | 139 | 515 | / | |
| / | / | / | 721 | / | |
| Gearbox Length L(mm) | 26.5 | 34.7 | 42.9 | 51.1 | 59.3 |
Note: Performance curves show speed-torque characteristics at rated voltage. Custom performance specifications available upon request for specific applications.
Performance Data
| Gearbox Motor Model | Voltage (V) | No Load | Max Efficiency Load | |||
|---|---|---|---|---|---|---|
| Current (A) | Speed (r/min) | Current (A) | Speed (r/min) | Torque (kg.cm) | ||
| SK-LP36-555-24167 | 24 | ≤0.17 | 167 | ≤2.8 | 133 | 4.8 |
| SK-LP36-555-2432 | 24 | ≤0.17 | 32 | ≤2.8 | 26 | 22 |
| SK-LP36-555-2417 | 24 | ≤0.17 | 17 | ≤2.8 | 13 | 37 |
| SK-LP36-555-244.6 | 24 | ≤0.17 | 4.6 | ≤2.8 | 3.6 | 80* |
| SK-LP36-555-242.3 | 24 | ≤0.17 | 2.3 | ≤2.8 | 1.8 | 80* |
Remarks:
1. The Performance of gear motor are for reference only. We can customize per your own unique requests.
2. Most of our Customization service are no need extra or new toolings.
3. This gear motor could be matched with Hall sensor encoder.
4. Output shaft could be customized per your drawings.
1. The Performance of gear motor are for reference only. We can customize per your own unique requests.
2. Most of our Customization service are no need extra or new toolings.
3. This gear motor could be matched with Hall sensor encoder.
4. Output shaft could be customized per your drawings.
