SK-ME12-Hall-Sensor-Encoder
- Ultra-compact design, ideal for miniature DC motors and tight spaces.
- Dual-channel A/B output enables reliable CW/CCW direction detection.
- Low power consumption for energy-efficient control systems.
Resolution (PPR):
3 PPR
Supply Voltage:
3.0 – 18 V DC
Output Current:
20 mA (Max)
Supply Current:
2 – 6 mA
Magnet Size:
Ø7.6 × 1.2 mm
Operating Temperature:
−40 °C ~ +150 °C

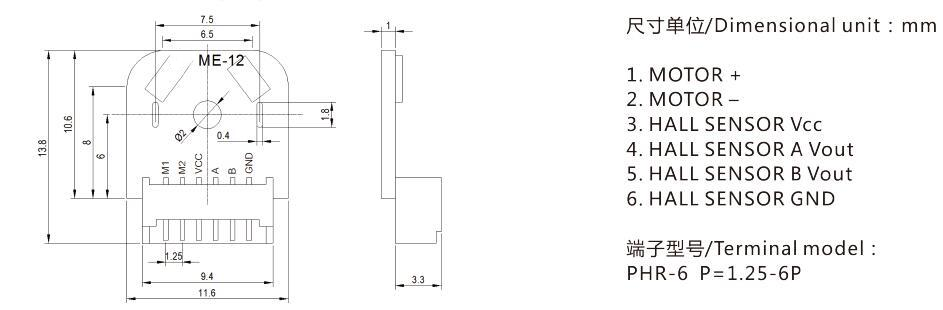

Dimensions

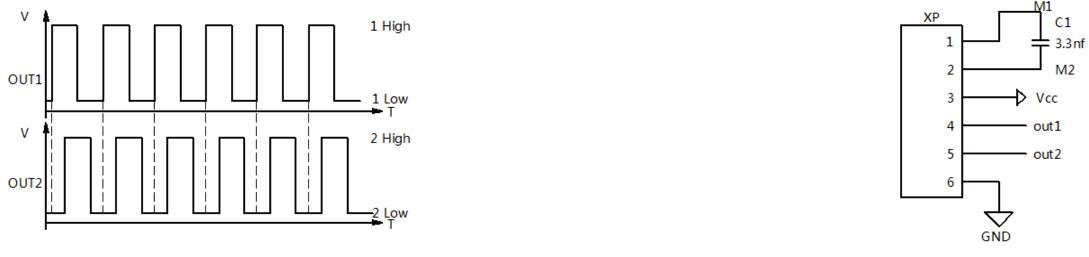

WaveForm
Hall Sensor Specifications
| Characteristics | Symbol | Test Conditions | Values | Unit | ||
|---|---|---|---|---|---|---|
| Min. | Typ. | Max. | ||||
| Supply Voltage | VS | - | 3 | - | 18 | V |
| Output Voltage | VQ | : | -0.7 | - | 18 | V |
| Temperature | Tj | - | -40 | - | 150 | ℃ |
| Output Current | IQ | - | 0 | - | 20 | mA |
| Supply Current | IS | Vs = 3.0 V ... 18 V < Brp | 2 | 4 | 6 | mA |
| Reverse Current | ISR | Vs=-18V | 0 | 0.2 | 1 | mA |
| Output Saturation Voltage | VQSAT | IQ=20 mA | - | 0.3 | 0.6 | V |
| Output Leakage Current | IQLEAK | For VQ = 18 V | - | 0.05 | 10 | μA |
| Output Fall Time | tf | RL = 1.2 kΩ | - | 0.02 | 1 | μS |
Note: Technical specifications are provided at rated voltage under standard test conditions. Custom configurations available upon request.
