SK-LS30-395
- Strong gears & Low noise
- Compact size & High speed
- Application：Dosing system, Lock, Juice dispenser, Smart dispenser, Pump,Towel dispenser,etc.
Diameter
30 mm
Voltage Range
12-24V DC
Reduction Ratio
37-2447
Max Torque
30 kg.cm
Rated Speed
1.5-122 r/min
Current Range
0.1-0.35 A

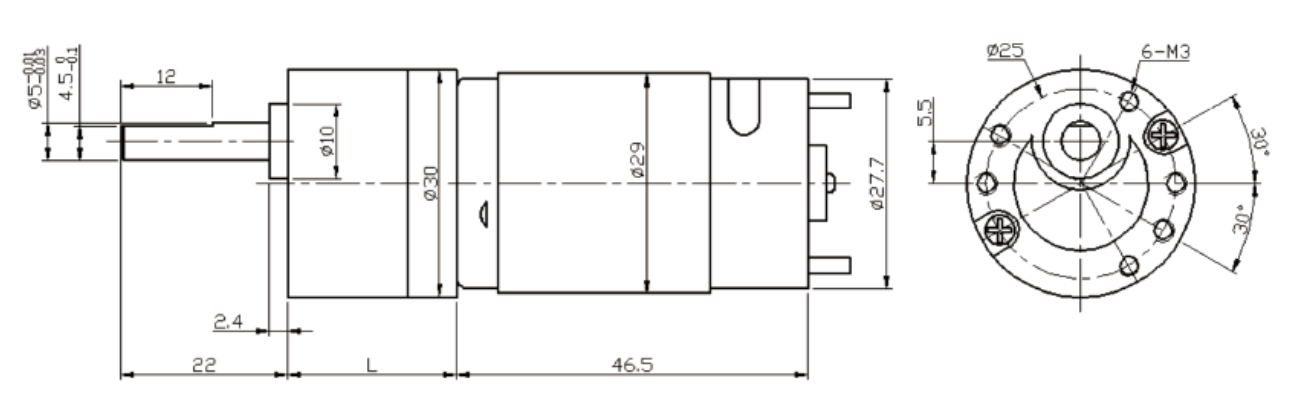

Dimensions
All dimensions are in (mm) unless otherwise noted. Drawings are for reference only—please contact us to confirm exact specifications.
Parameters
| Gearbox Stages | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|
| Gear Ratio | 37 | 88 | 206 | 619 | 1857 |
| / | 114 | 265 | 711 | 2132 | |
| / | 131 | 305 | 796 | 2387 | |
| / | / | 341 | 914 | 2447 | |
| / | / | 392 | 1049 | / | |
| / | / | 450 | 1548 | / | |
| Gearbox Length L(mm) | 22.2 | 24.8 | 27.4 | 30 | 32.6 |
Note: Performance curves show speed-torque characteristics at rated voltage. Custom performance specifications available upon request for specific applications.
Performance Data
| Gearbox Motor Model | Voltage (V) | No Load | Max Efficiency Load | |||
|---|---|---|---|---|---|---|
| Current (A) | Speed (r/min) | Current (A) | Speed (r/min) | Torque (kg.cm) | ||
| SK-LS30-395-24122 | 24 | ≤0.1 | 122 | ≤0.35 | 97.3 | 1.92 |
| SK-LS30-395-2451 | 24 | ≤0.1 | 51 | ≤0.35 | 40.9 | 4.15 |
| SK-LS30-395-2417 | 24 | ≤0.1 | 17 | ≤0.35 | 13.6 | 11.24 |
| SK-LS30-395-2415 | 24 | ≤0.1 | 15 | ≤0.35 | 11.8 | 12.93 |
| SK-LS30-395-247.0 | 24 | ≤0.1 | 7 | ≤0.35 | 5.8 | 23.77 |
| SK-LS30-395-246.0 | 24 | ≤0.1 | 6 | ≤0.35 | 4.5 | 30* |
| SK-LS30-395-243.0 | 24 | ≤0.1 | 3 | ≤0.35 | 2.3 | 30* |
| SK-LS30-395-242.0 | 24 | ≤0.1 | 2 | ≤0.35 | 1.5 | 30* |
Note: The performance data listed are for reference only. iSky Motor provides flexible customization based on your specific requirements. Most customization options do not require additional tooling. This gear motor is compatible with Hall sensor encoders, and the output shaft can be tailored according to your drawings.
