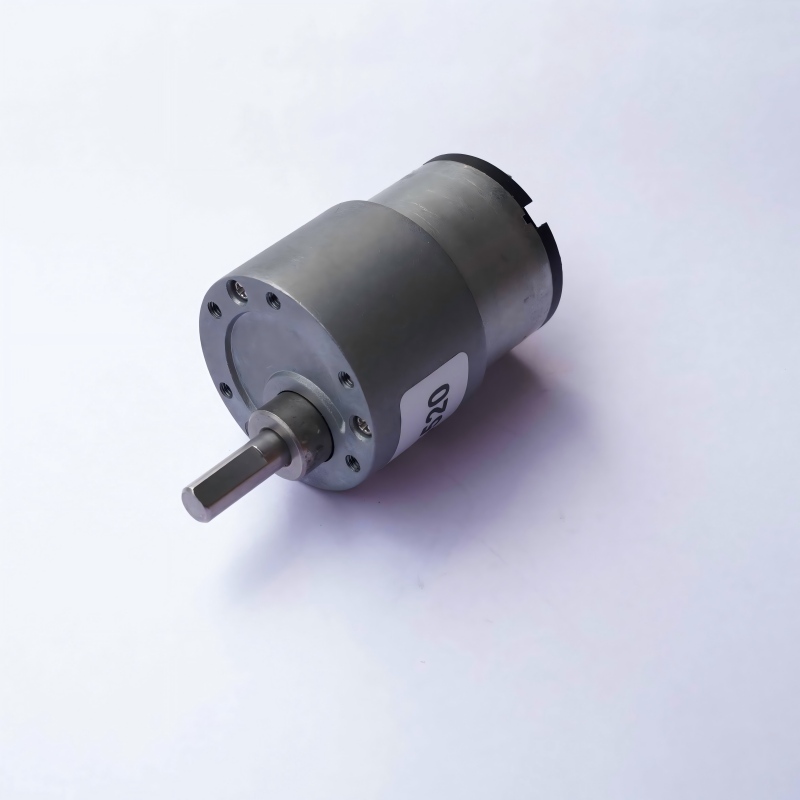

SK-LS37-520
- Strong gears & Low noise
- Compact size & Long life time
- Application：Dosing system, BBQ, Chicken coop,Touchless towel dispenser,Opener,etc.
Diameter
37 mm
Voltage Range
3-24V DC
Reduction Ratio
6-2430
Max Torque
40 kg.cm
Rated Speed
1-600 r/min
Current Range
0.06-0.5 A

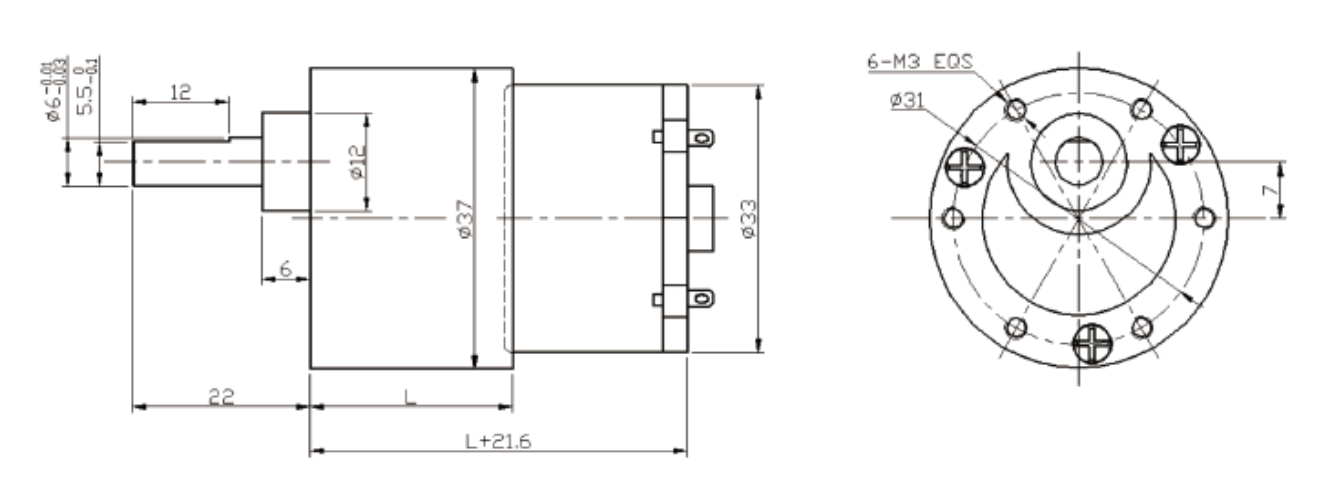

Dimensions
All dimensions are in (mm) unless otherwise noted. Drawings are for reference only—please contact us to confirm exact specifications.
Parameters
| Gearbox Stages | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|
| Gear Ratio | 6.8 | 20 | 41 | 107 | 311 | 1243 |
| 10 | 30 | 90 | 122 | 414 | 1657 | |
| / | / | / | 184 | 552 | 2430 | |
| / | / | / | 270 | 810 | / | |
| Gearbox Length L(mm) | 19 | 22.5 | 25 | 27.5 | 30 | 31.5 |
Note: Performance curves show speed-torque characteristics at rated voltage. Custom performance specifications available upon request for specific applications.
Performance Data
| Gearbox Motor Model | Voltage (V) | No Load | Max Efficiency Load | |||
|---|---|---|---|---|---|---|
| Current (A) | Speed (r/min) | Current (A) | Speed (r/min) | Torque (kg.cm) | ||
| SK-LS37-520-12600 | 12 | ≤0.06 | 600 | ≤0.5 | 480 | 0.36 |
| SK-LS37-520-12200 | 12 | ≤0.06 | 200 | ≤0.5 | 160 | 0.99 |
| SK-LS37-520-12146 | 12 | ≤0.06 | 146 | ≤0.5 | 117 | 1.2 |
| SK-LS37-520-1233 | 12 | ≤0.06 | 33 | ≤0.5 | 26 | 4.89 |
| SK-LS37-520-1222 | 12 | ≤0.06 | 22 | ≤0.5 | 17.8 | 7.2 |
| SK-LS37-520-1214 | 12 | ≤0.06 | 14 | ≤0.5 | 11.6 | 9.87 |
| SK-LS37-520-1211 | 12 | ≤0.06 | 11 | ≤0.5 | 8.7 | 13.2 |
| SK-LS37-520-124.0 | 12 | ≤0.06 | 4 | ≤0.5 | 2.9 | 40* |
| SK-LS37-520-122.0 | 12 | ≤0.06 | 2 | ≤0.5 | 1.7 | 40* |
Note: The performance data listed are for reference only. iSky Motor provides flexible customization based on your specific requirements. Most customization options do not require additional tooling. This gear motor is compatible with Hall sensor encoders, and the output shaft can be tailored according to your drawings.
