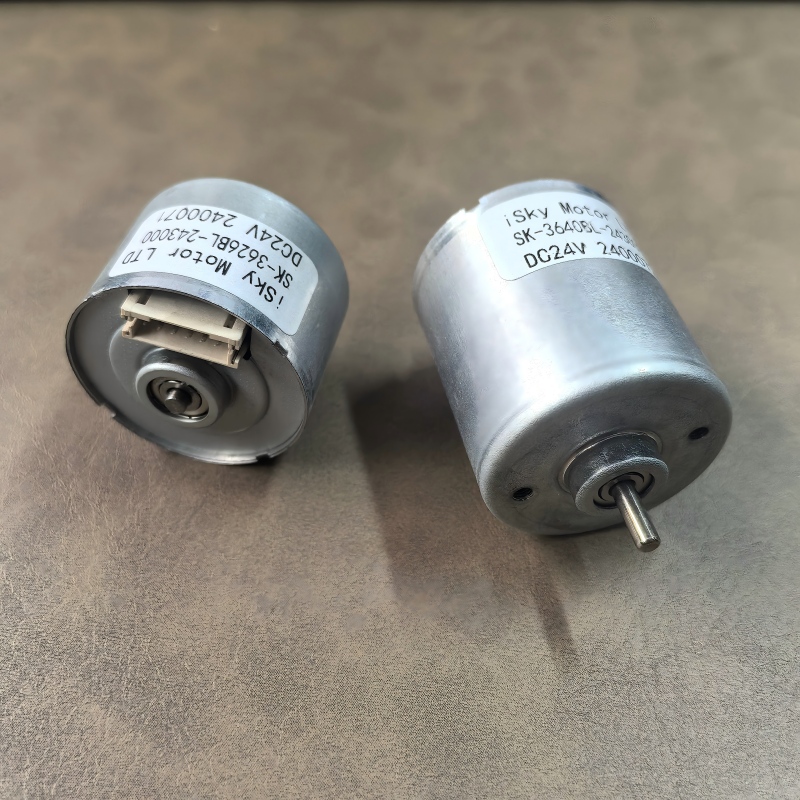

BLDC Motor Product Range
Comprehensive Selection of Brushless DC Motors for Various Applications

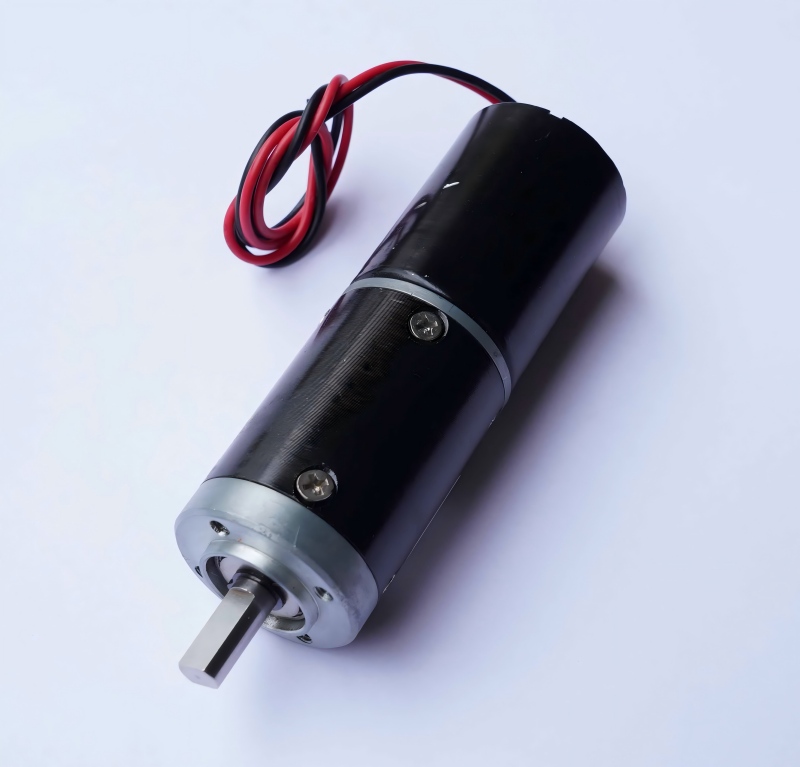

SK-LP28BL-2487
- • Diameter: 28mm
- • Voltage: 6-24V DC
- • Speed: 15-630 r/min
- • Torque: 2-75 kg.cm
- • Applications: Coffee machine, Valve, Pump, Medical equipment, ATM, etc.

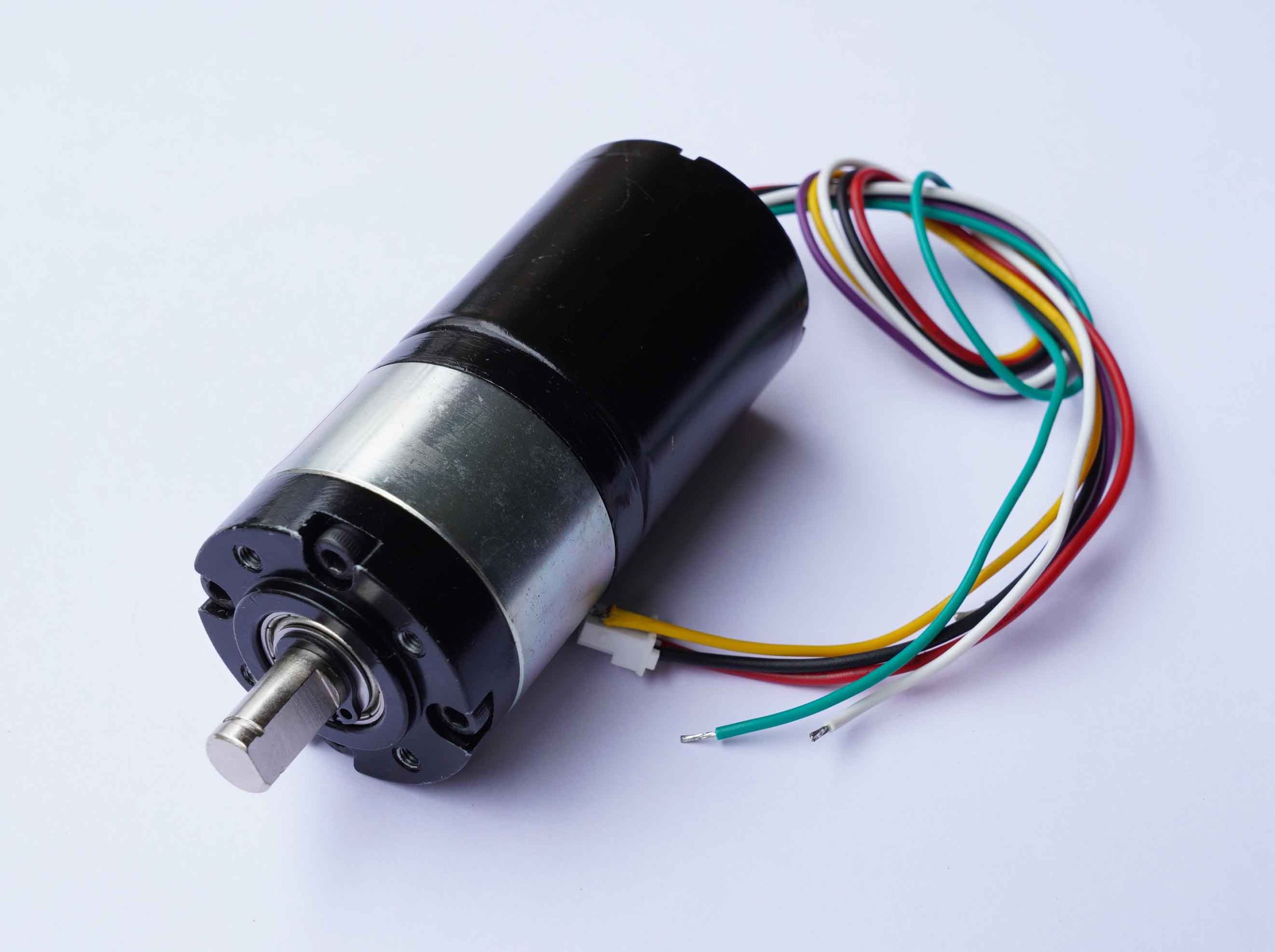

SK-LP36BL-3625
- • Diameter: 36mm
- • Voltage: 3-24V DC
- • Speed: 4-1150 r/min
- • Torque: 0.5-65 kg.cm
- • Applications: Valve, Coffee machine, Dosing system, Pump, Auto desk lift, etc.

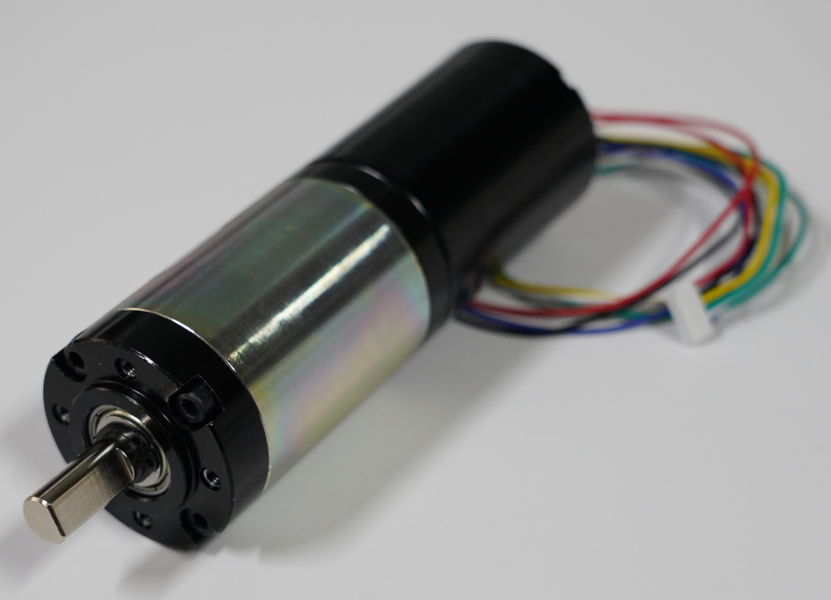

SK-LP36BL-3650
- • Diameter: 36mm
- • Voltage: 12-24V DC
- • Speed: 2-1150 r/min
- • Torque: 0.5-90 kg.cm
- • Applications: Valve, Vending machine, Dosing system, Medical equipment, etc.
Tailor Every Detail to Match Your Design
From structure to performance, every parameter can be flexibly customized according to your project requirements. iSky Motor has a professional engineering team that can assist in optimizing designs and rapid prototyping.
- Motor Type: BLDC Motor, Planetary Gearbox DC Motor, Flat Gearbox DC Motor, Worm Gearbox DC Motor, Spur Gearbox DC Motor Adaptive structures for different applications
- Voltage Range: 3V / 6V / 12V / 24V / 36V Customizable voltage range based on device power supply
- Gear Ratio: 5:1–500:1 Multiple reduction ratios for different speeds and torques
- Speed & Torque: Custom per request Precisely calibrated speed and torque based on load conditions
- Output Shaft: D-shape / Round / Customized Optional shaft types, supports custom length and cross-section
- Encoder / Hall Sensor: Optional Optional encoder or hall sensor feedback signal
- Connector Type: JST / Molex / Soldered Wires Meets assembly interface requirements
- Housing Material: Metal / Plastic Matches strength or cost requirements
- Dimensions: Custom size and mounting holes Dimensions and mounting holes can be customized for different structures
100% Customizable
Work With iSky Motor
Tell us about your project – we'll get back to you within 24 hours.
Why Choose iSky Motor?
Partner with a trusted DC motor manufacturer combining engineering expertise, flexible customization, and reliable quality.
Whether you need a standard model or a tailor-made motion solution, our team is ready to support your project from concept to production.
- 100+ professional engineers for design and testing
- Customized motor and gearbox solutions
- Direct factory communication, quick feedback
- International shipping experience
- Flexible MOQ and prototyping options
- Proven experience with European & American clients
- Certified quality management and on-time delivery
