SK-ME42-Hall-Sensor-Encoder
- Designed for high-torque 775 motors requiring precise feedback.
- Robust mechanical design maintains stability under heavy load.
- High temperature tolerance for long-term durability.
Resolution (PPR):
13 PPR
Supply Voltage:
3.0 – 18 V DC
Output Current:
≤50 mA
Supply Current:
4 – 6 mA
Magnet Size:
Ø14 × Ø5 mm
Operating Temperature:
−40 °C ~ +150 °C

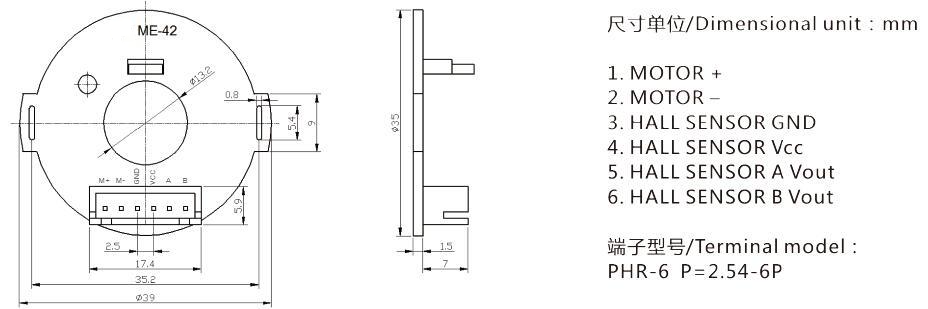

Dimensions

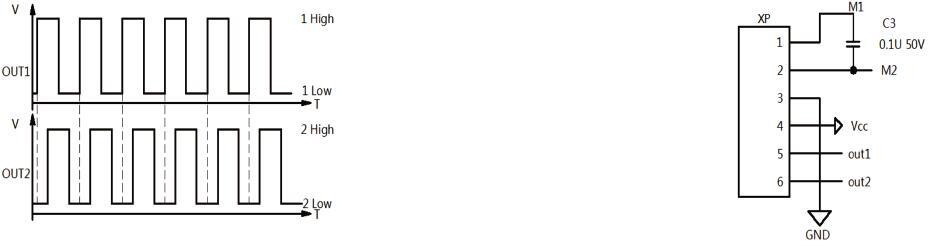

WaveForm
Hall Sensor Specifications
| Characteristics | Symbol | Test Conditions | Values | Unit | ||
|---|---|---|---|---|---|---|
| Min. | Typ. | Max. | ||||
| Supply Voltage | VS | Operating | 3 | 5 | 18 | V |
| Output Voltage | VQ | - | - | - | 18 | V |
| Temperature | Tj | - | -40 | - | 150 | ℃ |
| Output Current | IQ | - | - | - | 50 | mA |
| Supply Current | IS | B < Brp | - | 4 | 6 | mA |
| Reverse Battery Current | Vrcc | - | - | - | -0.5 | V |
| Output Saturation Voltage | VQSAT | Iout = 10 mA,B > Bop | - | 0.25 | 5 | V |
| Output Leakage Current | IQLEAK | B < Brp , Vout = 18V | - | 0.1 | 1 | μA |
| Output Fall Time | tf | RL = 10 kΩ | - | - | 1 | μS |
Note: Technical specifications are provided at rated voltage under standard test conditions. Custom configurations available upon request.
